Meat Bandsaw /

Automatic High Speed Meat BandSaw

HT-420ACT

  • Servo control system and human-machine interface makes the operation easier and convenient.
  • Accurate cutting – using high precision servo motor control.

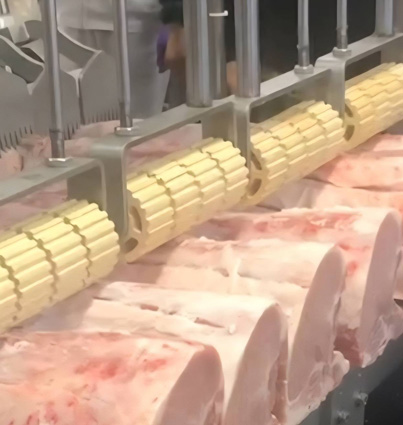

  • To cut multiple meat rolls at the same time can be adjusted the speed and sawing thickness under request.
  • Memory function has 30 sets can be memorize the history of different products.
  • Setting the reserved rest material length to avoid the waste for different meats.
  • Improves production efficiency and obey safety regulations that HT-420ACT save the labor costs in needs.
  • Excellent waterproof design and strong stainless steel structure comply with food hygiene standards.

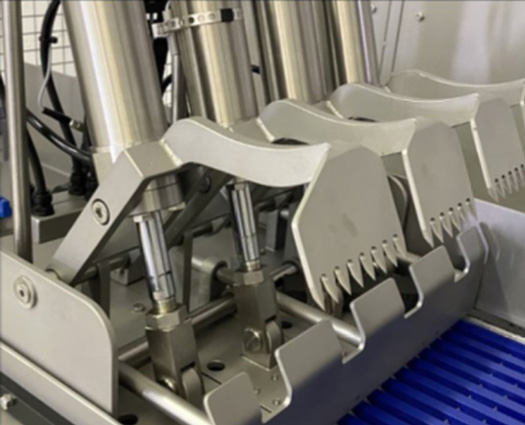

  • The unique design of the pressure roller device makes the cutting more stable.
  • Options the out feed conveyor to be smoothly the production line.
Model No. HT-420ACT
Table Size ( W x D ) 800 x 730 mm
Power Saw Table 5 HP + Moving Table 1.5 HP + Feeding 1 HP
Air Pressure Requirement 6 bar
Max. Clamping Height 165 mm
Voltage 220V 3phase
Machine dimensiom ( W x D x H ) 2064 × 1747 × 1864 mm
