Meat Mincer /

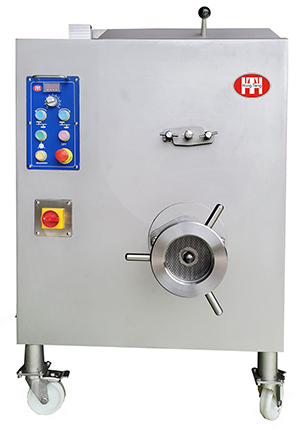

Meat Grinding & Mixing Machine

HTG-114M / HTG-130M

  • Made of stainless steel, no rust oxidation with the sanitary standard.
  • Grinding barrel in spiral shape to make the ground object in separated piece, not stuck together.
  • Double function of grinding and mixing.
  • 2 type of mixing paddle ( alternative ), can be worked clockwise or anticlockwise.
  • Strong gear box and big horse power.
  • The cap of machine devised with safety switch to protect the operator.
  • Grinding speed can be adjusted variable for grind different product.
  • Assembly two blades and three nets ( Unger system HTG-114M-UN and HTG-130M-UN ) can be placed at the same time to come out the finest result, timesaving and energy saving.
Model No. HTG-114M-UN HTG-130M-UN HTG-130M-EN
Motor Grinding 7.5 HP 3 phase 10 HP 3 phase 10HP 3 phase
Motor Mixing 2 HP 2 HP 2 HP
Capacity 800 kgs / hr 1000 kgs / hr 800 kgs / hr
Plate Dia. 114 mm Unger System 130 mm Unger System 130 mm Enterprise System
Machine size ( W x D x H ) 900 x 1210 x 1320 mm 900 x 1230 x 1320 mm 900 x 1160 x 1320 mm
Machine weight 460 kgs 485 kgs 480 kgs
